Stainless socket weld unions acc. to ASME

Den här sidan finns enbart på Engelska (This page is only available in English)

Unions, socket weld

Fittings & flanges

ASTM A182 3000 lbs ASME B16.11 / BS 3799, MSS SP-83

FSU-316L-1-3000

● = stock standard

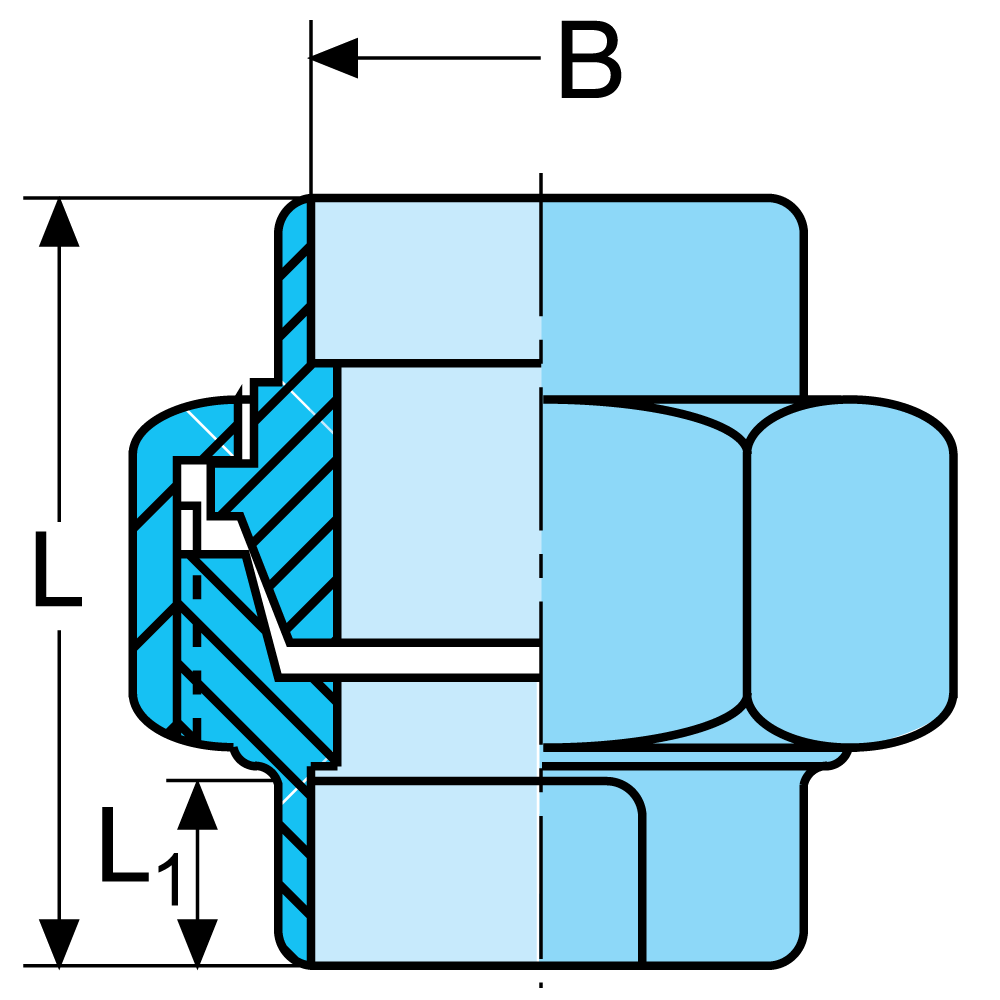

	B	L1	L	Weight	ASTM	ASTM
in.	mm	socket	mm (nom.)	~kg/pce	304/304L	316/316L
1/4 3/8 1/2 3/4	14.20 17.60 21.80 27.20	9.53 9.53 9.53 12.50	44.4 46.0 49.0 56.9	0.20 0.35 0.40 0.45	● ● ● ●	● ● ● ●
1 1¼ 1½ 2	33.90 42.70 48.80 61.20	12.50 12.50 12.50 16.00	62.0 71.1 76.5 86.1	1.00 1.30 1.70 3.00	● ● ● ●	● ● ● ●
